One variant of Inconel superalloys is Alloy 800. These are materials made of very austenitic stainless steel. The alloy's base is made of iron, nickel, and chromium, but it also contains silicon, molybdenum, copper, nitrogen, and other elements. Under a variety of conditions, they are very resistant to corrosion and show excellent strength in hot weather. Incoloy 800H is a titanium alloy with a composition of 0.2% that is utilised in particular applications. Heat exchangers, ammonia effluent coolers, electric range heating element sheathing, furnace components, and process pipes are among the applications. Additionally, the Alloy 800H is utilised in steam methane forming furnaces and ethylene furnaces for extruded tubing.
The titanium content of the Incoloy 800HT is 0.5%. Because of this, the Alloy 800HT is stronger and has a higher creep resistance than the 800H. Because of its chemical makeup, Incoloy 800 resists carburization and oxidation at high temperatures. For extended periods, the alloy can withstand high temperatures without losing its austenitic characteristics. This alloy is what makes the Inconel 800 heating element durable. The material is used to make sheathing, heating elements, carburizing equipment, and heat exchanger accessories. The alloy is also frequently used in the tubing of nuclear steam generators. The density of Incoloy 800 is approximately 7.94 grammes per cubic centimetre.
The amazing temperature range of the Incoloy 800 extends from cryogenic temperatures to hot temperatures. When the alloy is machined, it becomes work hardened. If you have matching filler metal, you can weld. Because the alloy has good ductility, conventional procedures might be used to manufacture this material. Inconel 800 may be cold worked with conventional tooling. You may get the Incoloy 800 Price by getting in touch with us. The costs of the various goods, forms, shapes, and grades offered by the Incoloy 800 providers may vary depending on the state of the market.
| Alloy | Seamless Tubing | Welded Tubing | Seamless Pipes | Welded Pipes | Bars | Sheet/Plates | Forging Products | B/W Pipe Fittings |
|---|---|---|---|---|---|---|---|---|
| Alloy 800 (UNS N08800 / 1.4876) | B163 | B515 | B407 | B154 | B408 | B409 | B564 | B366 |
| Alloy 800H (UNS N08810 / 1.4876) | B163 | B515 | B407 | B154 | B408 | B409 | B564 | B366 |
| Alloy 800HT (UNS N08811/ 1.4958) | B163 | B515 | B407 | B154 | B408 | B409 | B564 | B366 |
| Common Trade Name of Alloy 800 | Common Trade Name of Alloy 800H | Common Trade Name of Alloy 800HT | Common Trade Name of Alloy 800AT |
|---|---|---|---|
|
|
|
|
INCOLOY® alloy 800: UNS N08800, Werkstoff Number 1.4876.
INCOLOY® alloy 800H : UNS N08810, Werkstoff Number 1.4876. It is listed in NACE MR0175 for oil and gas service.
INCOLOY® alloy 800HT : UNS N08811, Werkstoff 1.4958
INCOLOY® alloy 800AT : Werkstoff 1.4959
| Incoloy Alloy 800 | up to about 1500 Deg F (816°C) |
|---|---|
| Incoloy Alloy 800H | 1100 Deg F (593°C) to 1800°F (982°C) |
|
Alloy |
UNS N08800 |
UNS N08811 |
UNS N08810 |
|---|---|---|---|
|
Grade |
800 |
800HT |
800H |
|
Carbon |
0.10 maximum |
0.06 - 0.10 |
0.05 - 0.10 |
|
Nickel (NI) |
30 - 35 |
same |
same |
|
Chromium |
19 - 23 |
same |
same |
|
Iron |
39.5 minimum |
39.5 minimum |
39.5 minimum |
|
Aluminum |
.15 - .60 |
.25 - .60 |
.15 - .60 |
|
Titanium |
.15 -.60 |
.25 - .60 |
.15 - .60 |
|
Aluminium plus Titanium |
.30 - 1.20 |
.85 - 1.20 |
.30 - 1.20 |
|
ASTM Grain Size |
NA |
5 / Coaser |
5 / Coarser |
| Product | .2% Yield (ksi) | Tensile (ksi) | Elongation (%) |
|---|---|---|---|
| Rod & Bar | 30-60 | 75-100 | 60-30 |
|
Nickel Grade |
Condition |
Available shapes |
Ultimate |
Yield |
Elongation |
|---|---|---|---|---|---|
|
800 |
Annealed |
Sheet, Plate |
85 (586) |
40 (276) |
43 |
|
800 |
Annealed |
Sheet, Plate |
75 (520)* |
30 (205)* |
30* |
|
800H |
SHT |
Sheet, Plate |
80 (552) |
35 (241) |
47 |
|
800H |
SHT |
Sheet, Plate |
65 (450)* |
25 (170)* |
30* |
The nickel-chromium alloy that makes up the Incoloy 800 / 800H / 800HT Bar is strong, which makes it suitable in a variety of sectors. Among the top suppliers and exporters of incoloy bar is unquestionably Sterling Metal and Alloys. The industries give their valued clients the highest quality products available on a global scale, customised to meet their specific needs in terms of size and shape. The corrosion and temperature resistance of Incoloy Bar is high. The organisation creates its products based on current market trends and provides its services worldwide. Additionally, they provide their consumers around the world extremely low prices on their Incoloy 800 / 800H / 800HT Bar. They receive delivery of these goods right to their doors.
| Grade | Incoloy Alloy 800, 800H, 800HT / UNS N08800, N08810, N08811 |
|---|---|
| Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Standard | ASTM B408 / ASME SB408 |
| Size | 5 mm To 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Length | 100 mm To 3000 mm Long & Above |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Form | Round Bars, Square Bars, Flat Bars, Threaded Bars, Hollow Bars, Hexagonal Bars, Triangular Bars |
| Application | Most commonly used in petroleum refineries, Boilers, Heat exchangers, Condensers, Pipelines, Cooling towers, Steam exhausts, Electric generation plants, On occasion will be found in fertilizer and chemical plants. |
The Incoloy 800, 800H, and 800HT Square Bars that we manufacture, supply, and export are a great option because of their exceptional tensile strength, strong rust resistance, and high fabrication ability. Chromium imparts resistance to oxidising media, while the high concentrations of nickel and molybdenum in Incoloy Alloy 800 Threaded Bars make them particularly resistant to pitting and crevice corrosion in reducing conditions. Our esteemed customers have requested certain sizes and thicknesses for our Incoloy 800 Hexagonal Bars, which boast excellent framing and welding qualities.
| Grade | Incoloy Alloy 800, 800H, 800HT / UNS N08800, N08810, N08811 |
|---|---|
| Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Standard | ASTM B408 / ASME SB408 |
| Size | 5 mm To 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Length | 100 mm To 3000 mm Long & Above |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Form | Round Bars, Square Bars, Flat Bars, Threaded Bars, Hollow Bars, Hexagonal Bars, Triangular Bars |
| Application | Most commonly used in petroleum refineries, Boilers, Heat exchangers, Condensers, Pipelines, Cooling towers, Steam exhausts, Electric generation plants, On occasion will be found in fertilizer and chemical plants. |
The Incoloy 800, 800H, and 800HT Square Bars that we manufacture, supply, and export are a great option because of their exceptional tensile strength, strong rust resistance, and high fabrication ability. Chromium imparts resistance to oxidising media, while the high concentrations of nickel and molybdenum in Incoloy Alloy 800 Threaded Bars make them particularly resistant to pitting and crevice corrosion in reducing conditions. Our esteemed customers have requested certain sizes and thicknesses for our Incoloy 800 Hexagonal Bars, which boast excellent framing and welding qualities.
| Grade | Incoloy Alloy 800, 800H, 800HT / UNS N08800, N08810, N08811 |
|---|---|
| Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Standard | ASTM B408 / ASME SB408 |
| Size | 5 mm To 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Length | 100 mm To 3000 mm Long & Above |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Form | Round Bars, Square Bars, Flat Bars, Threaded Bars, Hollow Bars, Hexagonal Bars, Triangular Bars |
| Application | Most commonly used in petroleum refineries, Boilers, Heat exchangers, Condensers, Pipelines, Cooling towers, Steam exhausts, Electric generation plants, On occasion will be found in fertilizer and chemical plants. |
All of the Incoloy 800, 800H, and 800HT pipes are composed of nickel-chromium alloy and provide the user a number of advantages. Metal alloys have enormous significance in the field of engineering. Choosing the best option for a project can be challenging with so many to choose from. Applications requiring strength and resistance to oxidation and carburization at high temperatures are the main uses for Incoloy 800 Pipes. Heat exchangers, pressure vessels, piping networks, chemical reactors, industrial furnaces, ovens, incinerators, boilers, and other devices are frequently used. Incoloy 800 is also utilised in marine applications, including seawater coolers, because of its remarkable corrosion resistance (even in harsh conditions).
| Specifications | ASTM B407, B514, B515 / ASME SB407, SB514, SB515 |
|---|---|
| Dimensions | ASTM, ASME and API |
| Size Range | 15"NB – 150"NB |
| Welded Pipe Size | 1 / 2″ NB – 24″ NB |
| Outer Diameter | 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness. |
| Schedule | SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Length | Single Random, Double Random & Cut Length |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, Coiled, "U" Shape, Pan Cake Coils, Hydraulic |
| Grade | 800 / 800H / 800HT UNS (N08800, N08810, N08811), DIN (1.4876, 1.4958, 1.4959) |

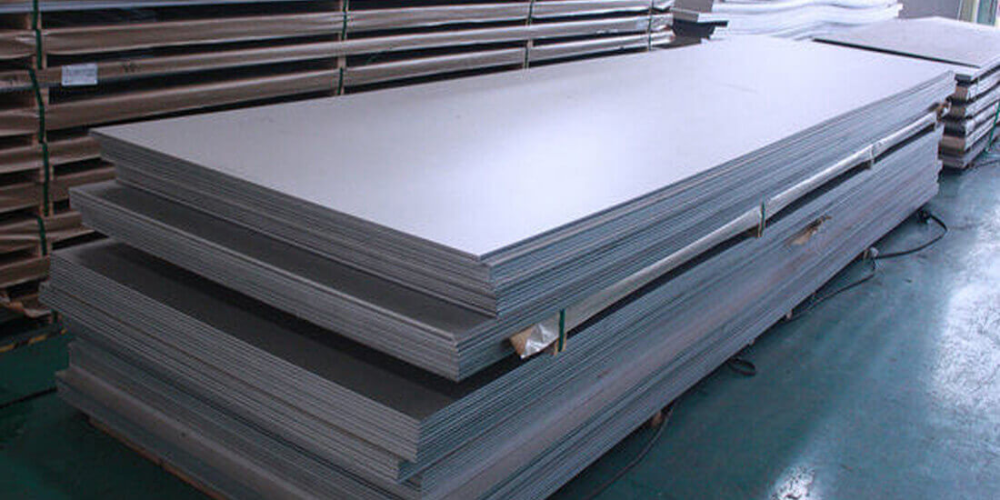

Incoloy 800, Incoloy 800H, and Incoloy 800HT are nickel-iron-chromium alloys designed for high-temperature applications, each exhibiting unique properties that cater to specific industrial needs. Incoloy 800 provides excellent resistance to oxidation, carburization, and sulfidation at elevated temperatures, making it ideal for use in heat exchangers, petrochemical processing, and industrial furnaces. Incoloy 800H, with a controlled carbon content, offers improved high-temperature strength and corrosion resistance, particularly in applications requiring enhanced creep and rupture properties. Incoloy 800HT, with further increased nickel content, is optimized for even higher temperature environments. These alloys are known for their exceptional strength, durability, and resistance to thermal cycling, making them suitable for applications such as nitric acid production, industrial heating, and power generation. Sheets and plates made from Incoloy 800 series alloys are meticulously manufactured to meet stringent specifications, ensuring precise dimensions and mechanical properties. These materials exhibit good formability and weldability, allowing for ease of fabrication and customization according to specific project requirements. The alloys maintain their structural integrity and mechanical properties even in challenging conditions, providing reliable performance at elevated temperatures. Incoloy 800 series sheets and plates find application in a variety of industries where high-temperature strength, corrosion resistance, and longevity are crucial. Their versatility, coupled with a proven track record in demanding environments, makes them integral components in critical processes across various sectors.
| Property | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
|---|---|---|---|
| Material | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| Composition | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60%, C 0.05-0.10% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.25-0.60%, Al 0.85-1.20%, C 0.06-0.10% |
| Density | 7.94 g/cm³ | 7.94 g/cm³ | 7.94 g/cm³ |
| Melting Point | 1350-1400°C (2462-2552°F) | 1350-1400°C (2462-2552°F) | 1350-1400°C (2462-2552°F) |
| Tensile Strength | Min. 520 MPa (75 ksi) | Min. 450 MPa (65 ksi) | Min. 600 MPa (87 ksi) |
| Yield Strength | Min. 205 MPa (30 ksi) | Min. 170 MPa (25 ksi) | Min. 415 MPa (60 ksi) |
| Elongation | Min. 30% | Min. 30% | Min. 30% |
| Corrosion Resistance | Good resistance to oxidation and carburization | Improved high-temperature strength and corrosion resistance | Optimized for higher temperature environments |
| Forms | Sheets, Plates | Sheets, Plates | Sheets, Plates |

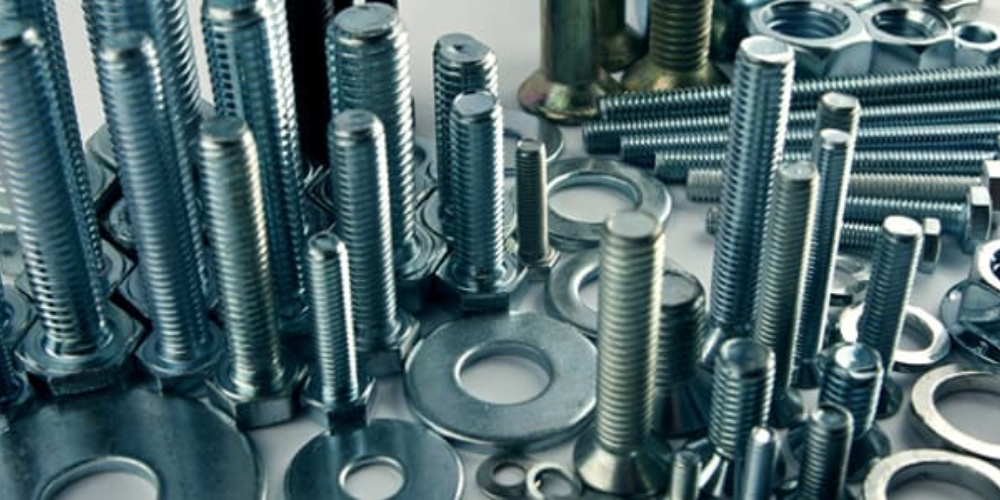

Incoloy 800, Incoloy 800H, and Incoloy 800HT fasteners represent a family of nickel-iron-chromium alloys renowned for their exceptional high-temperature strength and corrosion resistance. These alloys are primarily composed of nickel, iron, and chromium, with variations in carbon, aluminum, and titanium content to achieve distinct properties. Incoloy 800, the base alloy, exhibits remarkable resistance to oxidation, carburization, and nitridation at elevated temperatures. Incoloy 800H is specially designed for high-temperature applications requiring enhanced creep and rupture properties, achieved through controlled carbon and aluminum levels. Incoloy 800HT further elevates these characteristics, catering to extreme service conditions with increased carbon content for improved high-temperature strength. Fasteners made from Incoloy 800/800H/800HT are customizable in size and adhere to ASTM B408 standards. They offer a versatile range of finishes, including plain, black, zinc-plated, and hot-dip galvanized, suitable for various environmental conditions. Thread types such as UNC, UNF, Metric Coarse, and Metric Fine contribute to their adaptability in diverse industrial settings. With a tensile strength of 75 ksi (520 MPa) and a yield strength of 30 ksi (205 MPa), these fasteners ensure robust mechanical performance. Eligible under ASTM B408, they are renowned for their corrosion resistance, particularly in harsh environments prone to oxidation and carburization. Applications span industries like chemical processing, petrochemicals, and power generation, where reliability under extreme temperatures and corrosive atmospheres is paramount. In summary, Incoloy 800/800H/800HT fasteners epitomize high-performance alloys, offering a tailored solution for applications demanding elevated temperature strength and exceptional corrosion resistance. Their adaptability, mechanical robustness, and resistance to environmental degradation make them indispensable in critical industrial processes.
| Property | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
|---|---|---|---|
| Material | Incoloy 800/800H/800HT | ||
| Size Range | Customizable | ||
| Standard | ASTM B408 | ||
| Grade | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| Finish | Plain, Black, Zinc Plated, Hot Dip Galvanized, etc. | ||
| Thread Type | UNC, UNF, Metric Coarse, Metric Fine, etc. | ||
| Tensile Strength | 75 ksi (520 MPa) | 75 ksi (520 MPa) | 75 ksi (520 MPa) |
| Yield Strength | 30 ksi (205 MPa) | 30 ksi (205 MPa) | 30 ksi (205 MPa) |
| Eligibility | ASTM B408 | ||
| Corrosion Resistance | Excellent resistance to oxidation, carburization, and nitridation | ||
Incoloy 800 / 800H / 800HT Butt Weld Pipe Fittings are available in a large variety from Sterling Metal and Alloys, and they are made with the highest calibre metals and alloys. With excellent strength and resistance to oxidation and carburization in high-temperature applications, Incoloy 800/800H/800Ht is an alloy based on chromium, nickel, and iron. Aluminium, carbon, and titanium are tightly controlled, which results in the great strength. Consequently, it is employed in applications requiring higher temperatures. The alloy Incoloy 800/800H/800Ht, which is based on chromium, nickel, and iron, is incredibly strong and resistant to oxidation and carburization in high-temperature applications. The high temperature structural applications are the intended use for ASTM B366 Incoloy 800 Buttweld Pipe Fittings. Above all, Incoloy 800HT Butt Weld Pipe Fittings are valuable for high-temperature instruments in petrochemical production since the alloy does not undergo embrittling sigma segment after a laborious exposure to 1200 degrees Fahrenheit (649 degrees Celsius). These Incoloy 800 Pipe Fittings have a stronger creep-rupture strength because of the titanium, carbon, and aluminium content.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Type | Seamless / Welded / Fabricated |
| Schedule | Sch 5 TO Sch XXS. |
| Thickness | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc |

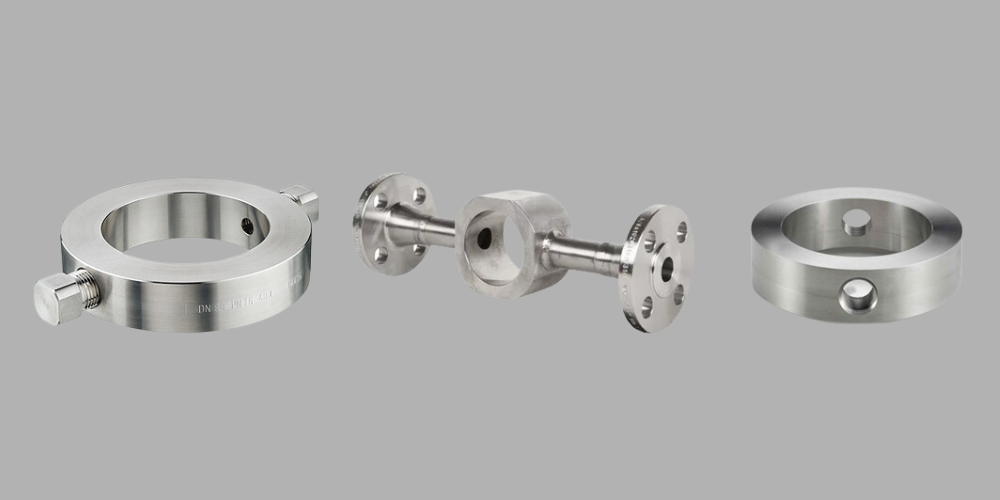

Incoloy 800, Incoloy 800H, and Incoloy 800HT Flushing Rings embody essential components in industries requiring high-temperature corrosion resistance and superb mechanical properties. These nickel-iron-chromium alloys are designed to withstand harsh environments, making them pivotal in applications such as chemical processing, petrochemical, and power generation. Flushing rings, crafted from these alloys, play a critical role in maintaining the integrity of fluid handling systems. Incoloy 800 provides excellent resistance to oxidation, carburization, and sulfidation at elevated temperatures, ensuring the longevity of flushing ring performance. Incoloy 800H, with controlled carbon content, offers enhanced high-temperature strength and corrosion resistance, making it suitable for applications requiring superior creep and rupture properties. Incoloy 800HT, with increased nickel content, is optimized for even higher temperature environments, making it ideal for demanding industrial processes. These alloys, in the form of flushing rings, are crucial for preventing contamination and ensuring optimal fluid flow in chemical reactors, pipelines, and industrial equipment. The flushing rings' durability is complemented by the alloys' exceptional mechanical strength and resistance to thermal cycling. Their weldability and fabricability contribute to easy installation and customization, allowing for precise adaptation to specific project requirements. In summary, Incoloy 800, 800H, and 800HT Flushing Rings serve as reliable components in critical fluid handling systems, combining high-temperature resistance, corrosion resistance, and mechanical robustness to ensure the efficiency and longevity of industrial processes in challenging environments.
| Property | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
|---|---|---|---|
| Material | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| Composition | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60%, C 0.05-0.10% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.25-0.60%, Al 0.85-1.20%, C 0.06-0.10% |
| Temperature Resistance | Up to 1,200°C (2,192°F) | Up to 1,200°C (2,192°F) | Up to 1,200°C (2,192°F) |
| Corrosion Resistance | Excellent | Excellent | Excellent |
| Forms | Flushing Rings | Flushing Rings | Flushing Rings |
| Applications | Chemical processing, petrochemical, power generation | Chemical processing, petrochemical, power generation | Chemical processing, petrochemical, power generation |
| Dimensional Stability | High | High | High |
| Weldability | Good | Good | Good |
| Fabricability | Excellent | Excellent | Excellent |

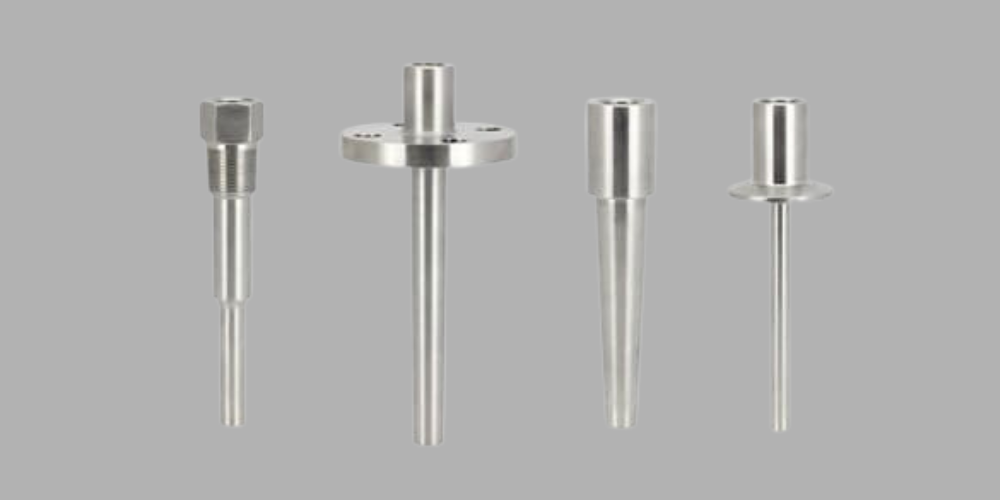

Incoloy 800, Incoloy 800H, and Incoloy 800HT Forged Thermowells are indispensable components in high-temperature and corrosive environments, exhibiting superior performance in industries such as chemical processing, petrochemical, and power generation. These nickel-iron-chromium alloys are specifically engineered to withstand extreme conditions, providing excellent resistance to oxidation, carburization, and sulfidation. Forged thermowells crafted from Incoloy 800 series alloys play a critical role in protecting temperature sensors and ensuring accurate temperature measurements in challenging industrial processes. Incoloy 800 offers exceptional high-temperature strength and corrosion resistance, making it suitable for applications where reliability and longevity are paramount. Incoloy 800H, with controlled carbon content, further enhances its high-temperature properties, providing improved creep and rupture resistance. Incoloy 800HT, with increased nickel content, is optimized for even higher temperature environments, making it an ideal choice for critical applications in industries demanding elevated thermal stability. The forging process enhances the structural integrity of thermowells, ensuring durability and reliability under extreme conditions. These alloys' versatility extends to their weldability and fabricability, allowing for precise customization and ease of installation. Whether used in chemical reactors, pipelines, or industrial machinery, Incoloy 800 series Forged Thermowells exhibit a combination of mechanical strength, thermal stability, and corrosion resistance crucial for precise temperature measurement in demanding environments. In summary, Incoloy 800, 800H, and 800HT Forged Thermowells stand as robust solutions, exemplifying a synergy of material properties tailored to meet the stringent requirements of industries where accurate and reliable temperature measurement is vital.
| Property | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
|---|---|---|---|
| Material | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| Composition | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60%, C 0.05-0.10% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.25-0.60%, Al 0.85-1.20%, C 0.06-0.10% |
| Temperature Range | Up to 1,200°C (2,192°F) | Up to 1,200°C (2,192°F) | Up to 1,200°C (2,192°F) |
| Creep Resistance | Excellent | Improved with controlled carbon content | Optimized for higher temperature environments |
| Pressure Rating | Dependent on design and application | Dependent on design and application | Dependent on design and application |
| Weldability | Good | Good | Good |
| Fabricability | Excellent | Excellent | Excellent |
| Applications | Chemical processing, petrochemical, power generation | Chemical processing, petrochemical, power generation | Chemical processing, petrochemical, power generation |

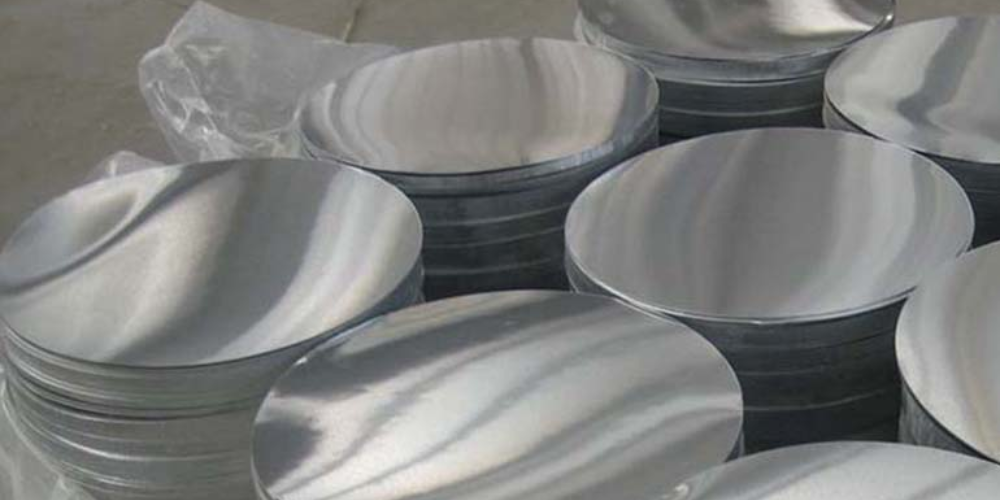

Incoloy 800, Incoloy 800H, and Incoloy 800HT Forged Circles exemplify superior engineering for applications demanding high-temperature strength and corrosion resistance. These nickel-iron-chromium alloys are tailored to withstand extreme conditions, making them integral in industries such as chemical processing, petrochemical, and power generation. Forged circles, derived from Incoloy 800 series alloys, showcase exceptional mechanical strength and resistance to oxidation, carburization, and sulfidation. Incoloy 800, renowned for its high-temperature properties, provides robust solutions in applications where durability and reliability are paramount. Incoloy 800H, with controlled carbon content, further enhances high-temperature strength and corrosion resistance, making it suitable for applications requiring superior creep and rupture properties. Incoloy 800HT, with increased nickel content, is optimized for even higher temperature environments, making it a preferred choice in critical industrial processes. The forging process enhances the structural integrity of circles, ensuring longevity and reliability under extreme conditions. Forged circles crafted from these alloys find application in chemical reactors, heat exchangers, and industrial machinery, where their exceptional thermal stability and resistance to harsh environments are crucial. Their weldability and fabricability contribute to easy installation and customization, allowing for precise adaptation to specific project requirements. In summary, Incoloy 800, 800H, and 800HT Forged Circles stand as resilient components, combining high-temperature strength, corrosion resistance, and mechanical robustness to ensure the efficiency and longevity of industrial processes in challenging environments.
| Property | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
|---|---|---|---|
| Material | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| Composition | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60%, C 0.05-0.10% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.25-0.60%, Al 0.85-1.20%, C 0.06-0.10% |
| Temperature Range | Up to 1,200°C (2,192°F) | Up to 1,200°C (2,192°F) | Up to 1,200°C (2,192°F) |
| Strength | High tensile and yield strength | High tensile and yield strength | High tensile and yield strength |
| Forging Process | Enhanced structural integrity | Enhanced structural integrity | Enhanced structural integrity |
| Weldability | Good | Good | Good |
| Fabricability | Excellent | Excellent | Excellent |
| Applications | Chemical processing, petrochemical, power generation | Chemical processing, petrochemical, power generation | Chemical processing, petrochemical, power generation |

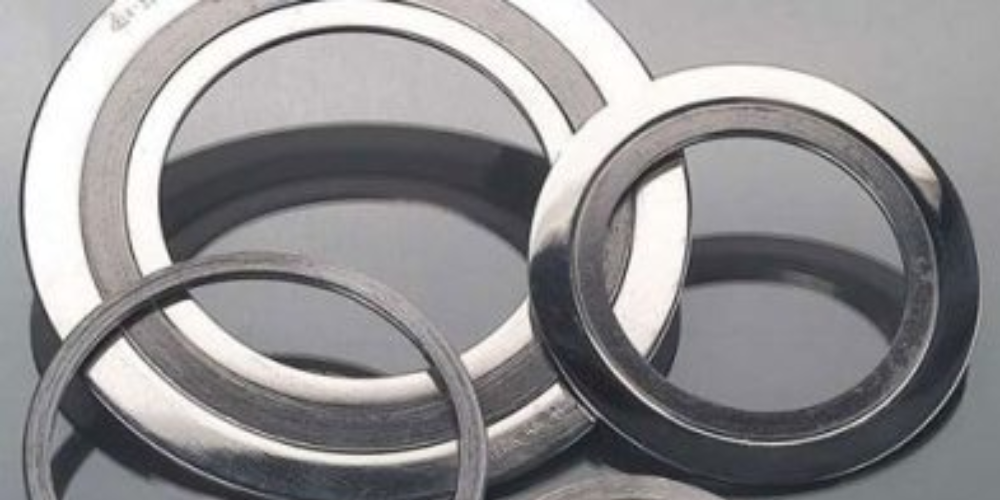

Incoloy 800, Incoloy 800H, and Incoloy 800HT gaskets stand as essential components in industries demanding exceptional corrosion resistance and high-temperature stability. These nickel-iron-chromium alloys are specifically designed to endure harsh environments, making them indispensable in applications such as chemical processing, petrochemical, and power generation. Gaskets crafted from the Incoloy 800 series alloys provide excellent resistance to oxidation, carburization, and sulfidation, ensuring reliable sealing performance in diverse industrial processes. Incoloy 800, renowned for its high-temperature strength, offers robust solutions in applications where durability and longevity are paramount. Incoloy 800H, featuring controlled carbon content, enhances its high-temperature properties, providing improved resistance to creep and rupture. Incoloy 800HT, with increased nickel content, is optimized for even higher temperature environments, making it a preferred choice in critical industrial processes. These gaskets play a crucial role in maintaining leak-tight seals, preventing fluid or gas escape in chemical reactors, pipelines, and various industrial equipment. The gaskets' durability is complemented by the alloys' exceptional mechanical strength and thermal stability. Their weldability and fabricability contribute to easy installation and customization, allowing for precise adaptation to specific project requirements. In summary, Incoloy 800, 800H, and 800HT gaskets serve as reliable sealing solutions, combining high-temperature resistance, corrosion resistance, and mechanical robustness to ensure the efficiency and longevity of industrial processes in challenging environments.
| Property | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
|---|---|---|---|
| Material | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| Composition | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.15-0.60%, Al 0.15-0.60%, C 0.05-0.10% | Ni 30-35%, Fe 39.5%, Cr 19-23%, Ti 0.25-0.60%, Al 0.85-1.20%, C 0.06-0.10% |
| Temperature Range | Up to 1,200°C (2,192°F) | Up to 1,200°C (2,192°F) | Up to 1,200°C (2,192°F) |
| Corrosion Resistance | Excellent | Excellent | Excellent |
| Pressure Rating | Dependent on design and application | Dependent on design and application | Dependent on design and application |
| Applications | Chemical processing, petrochemical, power generation | Chemical processing, petrochemical, power generation | Chemical processing, petrochemical, power generation |
| Dimensional Stability | High | High | High |
| Weldability | Good | Good | Good |
| Fabricability | Excellent | Excellent | Excellent |
