The majority of organic and inorganic acids are well withstood by alloy B2. The substance resists reduction. Even sulfuric, phosphoric, and acetic acids, as well as hydrogen chloride gas, cannot break it. Part of the high performance nickel-chromium-molybdenum superalloy family is the alloy in question. Their benefit is that they are resistant to even the most reducing conditions thanks to the presence of nickel and molybdenum. Since these materials have additional chromium, they also have a strong oxidation resistance. In systems where copper or iron is present in combination in the oxidising or reducing media, particularly hydrochloric acid, Hastelloy B2 UNS N10665 should be utilised cautiously. You may use it just as it is after welding, and it is simple to weld. Intergranular corrosion does not influence the heat-affected zone because there is less carbide precipitation production at the welded connections. Consequently, even after welding, the DIN 2.4617 material remains resistant to both localised and uniform corrosion. It also exhibits excellent resistance to pitting, crevice, and stress corrosion attacks. We provide a competitive pricing for Hastelloy B2, while the price varies according on the supplier. 9.2 grammes per centimetre cube is the Hastelloy B2 density. It may be utilised at high pressures and temperatures and has a high yield strength. The material is produced by the Hastelloy B2 vendors in a variety of shapes and forms.
| Sheets / Plates | Smls Pipes | Welded Pipes | Smls Tube | Welded Tube | Bars / Rods | Forging | Pipe Fitting | |
|---|---|---|---|---|---|---|---|---|
| Hastelloy B-2 | B335 | B622 | B626 | B622 | B619 | B333 | B564 | B366 |
UNS Number N010665
Other name: Alloy B-2
WNR 2.4617
| Property | Value |
|---|---|
| Material | Hastelloy B2 |
| Composition | Ni: 66%, Mo: 28-34%, Fe: 2%, Co: 1%, Cr: 1% |
| Temperature Range | Up to 1000°F (538°C) |
| Density | 9.2 g/cm³ |
| Specific Heat | 0.102 Btu/lb°F (425 J/kg°C) |
| Tensile Strength | 110,000 psi (760 MPa) |
| Yield Strength (0.2% offset) | 51,000 psi (350 MPa) |
Hastelloy B-2 Round Bar:
Hastelloy B-2 round bars are an improved version of Hastelloy B, offering enhanced corrosion resistance, especially in reducing conditions. These bars are used in applications where resistance to a variety of corrosive media, including sulfuric acid and phosphoric acid, is required.
| Property | Specification |
|---|---|
| Chemical Composition |
|
| Mechanical Properties |
|
| Corrosion Resistance | Excellent resistance to a wide range of corrosive environments, including sulfuric acid and phosphoric acid. |
| Applications | Chemical processing, oil and gas, pollution control. |
Hastelloy B-2 Square Bar:
Hastelloy B-2 square bars, an improved version of Hastelloy B, offer enhanced corrosion resistance, especially in reducing conditions. With excellent resistance to sulfuric acid, hydrochloric acid, and phosphoric acid, these square bars find applications in environments requiring resistance to a broad range of corrosive media.
| Property | Specification |
|---|---|
| Chemical Composition |
|
| Mechanical Properties |
|
| Corrosion Resistance | Excellent resistance to a wide range of corrosive environments, including sulfuric acid and phosphoric acid. |
| Applications | Chemical processing, oil and gas, pollution control. |
Hastelloy B-2 Hex Bar:
Hastelloy B-2 is an improved version of Hastelloy B with enhanced resistance. Comprising 68% Nickel, these hex bars exhibit excellent corrosion resistance to a variety of corrosive environments. With a minimum tensile strength of 110 ksi, B-2 hex bars find applications in chemical processing, oil and gas, and pollution control.
| Property | Specification |
|---|---|
| Chemical Composition |
|
| Mechanical Properties |
|
| Corrosion Resistance | Excellent resistance to a wide range of corrosive environments, including sulfuric acid and phosphoric acid. |
| Applications | Chemical processing, oil and gas, pollution control. |
Hastelloy B-2 Pipes:
Hastelloy B-2 pipes are an improved version of Hastelloy B, featuring enhanced resistance to corrosive environments. Comprising 68% Nickel, these pipes exhibit excellent corrosion resistance to various media. With a minimum tensile strength of 110 ksi, B-2 pipes find applications in chemical processing, oil and gas, and pollution control.
| Property | Specification |
|---|---|
| Chemical Composition |
|
| Mechanical Properties |
|
| Corrosion Resistance | Excellent resistance to a wide range of corrosive environments, including sulfuric acid and phosphoric acid. |
| Applications | Chemical processing, oil and gas, pollution control. |
Hastelloy B-2 sheets and plates are highly sought-after materials in various industrial applications due to their exceptional corrosion resistance and mechanical properties. Composed primarily of nickel, molybdenum, and chromium, these sheets and plates are designed to withstand aggressive chemical environments, making them suitable for applications in chemical processing, petrochemical, and pharmaceutical industries. The composition of Hastelloy B-2 includes nickel (Ni), molybdenum (Mo), iron (Fe), and chromium (Cr). Notably, the absence of significant amounts of elements like copper in comparison to its predecessor, Hastelloy B, enhances the resistance of B-2 to certain types of corrosion, including hydrochloric acid, sulfuric acid, and other reducing media. Hastelloy B-2 sheets and plates exhibit a wide temperature range of usability, withstanding temperatures up to 1000°F (538°C). This thermal stability, coupled with its corrosion resistance, makes it an ideal choice for applications involving both high temperatures and aggressive chemical environments.
| Property | Hastelloy B-2 |
|---|---|
| Composition | Ni 68%, Mo 28%, Fe 2%, Co 1% |
| Density | 9.24 g/cm³ |
| Melting Point | 1330-1380°C (2426-2500°F) |
| Tensile Strength | Min. 690 MPa (100 ksi) |
| Yield Strength | Min. 240 MPa (35 ksi) |
| Elongation | Min. 40% |
| Corrosion Resistance | Excellent resistance to reducing media |
| Forms | Sheets, Plates |
Hastelloy B-2 fasteners are essential components renowned for their exceptional corrosion resistance and mechanical strength in demanding environments. Composed primarily of nickel, molybdenum, and iron, these fasteners are specifically designed to resist corrosive attacks, making them well-suited for applications in chemical processing, pharmaceuticals, and waste treatment. The unique composition of Hastelloy B-2 includes a significant percentage of nickel (Ni), molybdenum (Mo), and iron (Fe), which imparts excellent resistance to a wide range of corrosive substances, including sulfuric acid, hydrochloric acid, and other aggressive chemicals. This makes Hastelloy B-2 fasteners highly reliable in harsh chemical processing environments. Hastelloy B-2 fasteners offer superior thermal stability, withstanding temperatures up to 1000°F (538°C). This attribute makes them suitable for applications involving both high temperatures and corrosive media, ensuring consistent performance in challenging conditions.
| Property | Value |
|---|---|
| Material | Hastelloy B-2 |
| Size Range | Customizable |
| Standard | ASTM B335 |
| Grade | UNS N10665 |
| Finish | Plain, Black, Zinc Plated, Hot Dip Galvanized, etc. |
| Thread Type | UNC, UNF, Metric Coarse, Metric Fine, etc. |
| Tensile Strength | Minimum 110 ksi (760 MPa) |
| Yield Strength | Minimum 51 ksi (350 MPa) |
| Eligibility | ISO 9001:2015 |
| Corrosion Resistance | Excellent resistance to reducing acids |
| Applications | Chemical processing, pharmaceutical, pollution control, etc. |
| Temperature Range | -196°C to 550°C (-321°F to 1022°F) |
| Density | 9.22 g/cm³ |

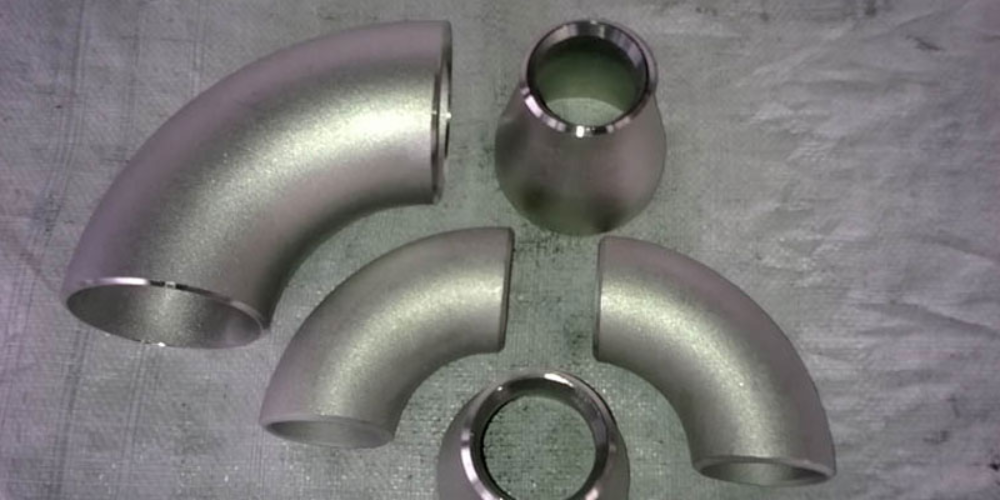

Hastelloy B-2 Fittings:
Hastelloy B-2 fittings represent an enhanced version of Hastelloy B, providing superior resistance to corrosive environments. Comprising 68% Nickel, these fittings exhibit excellent corrosion resistance to various media. With a minimum tensile strength of 110 ksi, B-2 fittings find applications in chemical processing, oil and gas, and pollution control.
| Property | Specification |
|---|---|
| Chemical Composition |
|
| Mechanical Properties |
|
| Corrosion Resistance | Excellent resistance to a wide range of corrosive environments, including sulfuric acid and phosphoric acid. |
| Applications | Chemical processing, oil and gas, pollution control. |
Hastelloy B-2 Flushing Rings are vital components designed to excel in corrosive environments, particularly in applications involving aggressive chemicals. Composed predominantly of nickel, molybdenum, and iron, these flushing rings are crafted from Hastelloy B-2, a material renowned for its remarkable resistance to various corrosive substances such as sulfuric acid, hydrochloric acid, and other corrosive media. The specific composition, featuring nickel (Ni), molybdenum (Mo), and iron (Fe), contributes to the exceptional corrosion resistance that Hastelloy B-2 is known for. These flushing rings offer a wide temperature range of usability, with the capability to withstand temperatures up to 1000°F (538°C). This thermal stability makes them suitable for applications where both elevated temperatures and corrosive environments are prevalent. The pressure rating of Hastelloy B-2 Flushing Rings varies based on the specific requirements of the application, providing flexibility for diverse industrial uses. Furthermore, the dimensions of these flushing rings are customizable to meet the precise needs of different systems and installations. Their corrosion resistance extends to both oxidizing and reducing environments, making them a reliable choice for critical applications in chemical processing plants, pharmaceutical facilities, and other corrosive media handling industries.
| Property | Value |
|---|---|
| Material | Hastelloy B-2 |
| Composition | Ni: 66%, Mo: 28-34%, Fe: 2%, Co: 1%, Cr: 1% |
| Temperature Range | Up to 1000°F (538°C) |
| Pressure Rating | Varies based on application |
| Dimensions | Customizable based on requirements |
| Corrosion Resistance | Excellent resistance to corrosive media |
Hastelloy B-2 Forged Thermowells represent an integral component in industrial temperature sensing applications, known for their exceptional corrosion resistance and robust construction. Comprised mainly of nickel, molybdenum, and iron, these thermowells are forged from Hastelloy B-2, a material celebrated for its ability to withstand corrosive environments. The specific composition, including nickel (Ni), molybdenum (Mo), and iron (Fe), contributes to the remarkable corrosion resistance that Hastelloy B-2 exhibits, particularly against corrosive media like sulfuric acid and hydrochloric acid. These thermowells offer a broad temperature range of up to 1000°F (538°C), making them suitable for applications where elevated temperatures are present. The pressure rating of Hastelloy B-2 Forged Thermowells varies, accommodating diverse industrial requirements. Additionally, the dimensions of these thermowells are customizable to meet the specific needs of different temperature sensing systems and installations. A standout feature of Hastelloy B-2 Forged Thermowells lies in their excellent resistance to corrosive media, making them ideal for deployment in aggressive chemical processing environments. Whether in chemical plants or industrial facilities handling corrosive substances, these thermowells play a critical role in protecting temperature sensors and ensuring accurate and reliable temperature measurements.
| Property | Value |
|---|---|
| Material | Hastelloy B-2 |
| Composition | Ni: 66%, Mo: 28-34%, Fe: 2%, Co: 1%, Cr: 1% |
| Temperature Range | Up to 1000°F (538°C) |
| Pressure Rating | Varies based on application |
| Dimensions | Customizable based on requirements |
| Corrosion Resistance | Excellent resistance to corrosive media |
Hastelloy B-2 Forged Circles stand as crucial components recognized for their exceptional corrosion resistance and durability in various industrial applications. These circles are crafted from Hastelloy B-2, a material composed predominantly of nickel, molybdenum, and iron. Notably, the composition includes nickel (Ni), molybdenum (Mo), and iron (Fe), imparting remarkable resistance to corrosive environments, especially against substances like sulfuric acid and hydrochloric acid. One of the defining features of these forged circles lies in their customizable diameter, tailored to meet specific industrial requirements. Additionally, the thickness of the circles varies based on application needs, offering versatility for different use cases. The surface finish of Hastelloy B-2 Forged Circles is typically smooth and machined, contributing to their aesthetic appeal and facilitating their integration into diverse systems. Manufactured through a solution annealing process, these circles undergo a heat treatment that enhances their structural integrity and ensures uniform properties across the material. This heat treatment contributes to the overall reliability and performance of Hastelloy B-2 Forged Circles in demanding operational conditions.
| Property | Value |
|---|---|
| Material | Hastelloy B-2 |
| Composition | Ni: 66%, Mo: 28-34%, Fe: 2%, Co: 1%, Cr: 1% |
| Diameter | Customizable based on requirements |
| Thickness | Varies based on application |
| Surface Finish | Smooth, Machined |
| Heat Treatment | Solution Annealed |
Hastelloy B-2 gaskets are essential sealing components known for their exceptional corrosion resistance and reliability in challenging industrial environments. Composed primarily of nickel, molybdenum, and iron, Hastelloy B-2 exhibits remarkable resistance to a wide range of corrosive media, including sulfuric acid, hydrochloric acid, and other aggressive chemicals. These gaskets are designed to withstand a broad temperature range, reaching up to 1000°F (538°C), making them suitable for applications where elevated temperatures are present. The material composition, featuring nickel (Ni), molybdenum (Mo), and iron (Fe), contributes to the gaskets' robustness and resilience in corrosive atmospheres. Hastelloy B-2 gaskets offer versatile sealing solutions for various industrial applications, including chemical processing, pharmaceuticals, and waste treatment. Their corrosion-resistant properties make them particularly well-suited for critical sealing points where the prevention of leaks and maintenance of system integrity are paramount.
| Property | Hastelloy B-2 |
|---|---|
| Material | Hastelloy B-2 |
| Composition | Ni 68%, Mo 28%, Fe 2%, Co 1% |
| Corrosion Resistance | Excellent resistance to reducing media |
| Temperature Resistance | Up to 1,090°C (1,994°F) |
| Pressure Rating | Dependent on design and application |
| Applications | Chemical processing, petrochemical |
| Dimensional Stability | High |
| Standards | ASTM, ASME |
